Product Details
The Festool Domino is the only tool that brings true mortise and tenon joinery to the palm of your hand and out of the workshop. The Domino will save you significant time and money. The Domino utilizes a drill bit style cutter that spins, while oscillating, creating mortises in easily adjustable sizes from 4-10mm in width and up to 50mm in depth. This unique cutter style, coupled with many versatile features, quickly adapting the tool to the job, makes mortise and tenon joinery fun, fast and easy.
The Domino’s rapid, repeatable mortising action and easy changeover between tenons and cutters (in only seconds) make tenon joinery faster, easier, and more accurate than ever before. The Domino tenons fit perfectly into the mortise helping create a strong, secure and resilient joint. The Domino has made mortise and tenon joinery repeatable, consistent and mobile. No longer is joinery a tedious and dubious task requiring many hours working with large shop equipment.
- Multiple cutters and tenons available - create mortises from 4x20mm to 10x50mm
- Precise Positioning – Utilizing an adjustable fence angle, retractable stops, adjustable cutter height and precise mortise depth stop
- Superior dust extraction keeps the work piece and area almost dust free
- Includes Cross & Trim Stops eliminate witness marks, guess work and allow for precise mortises even in thin stock
Tenon Size Selection
| Minimum Lumber Thickness | Tenon Size | Tenon Width | Tenon Length |
|---|---|---|---|
| 1/2" | 4 mm (5/32") | 17 mm (21/32") | 20 mm (25/32") |
| 9/16" | 5 mm (3/16") | 19 mm (3/4") | 30 mm (1-3/16") |
| 3/4" | 6 mm (7/32") | 20 mm (25/32") | 40 mm (1-9/16") |
| 1" | 8 mm (5/16") | 22 mm (27/32") | 40 mm (1-9/16") 50 mm (1-31/32") |
| 1-3/16" | 10 mm (25/64") | 24 mm (15/16") | 50 mm (1-31/32") 80 mm (3-5/32") |
* Note: Imperial (inches) measurements are approximate conversions from metric dimensions.
Includes:
- (1) Domino Cutter (5mm)
- (1) Plug-it Power Cord
- (1) Support Bracket
- (1) Wrench
- (1) Trim Stop
- (1) Cross Stop
- (2) Systainer
- 4 x 20mm Tenons (450)
- 5 x 30mm Tenons (225)
- 6 x 40mm Tenons (150)
- 8 x 40mm Tenons (100)
- 8 x 50mm Tenons (75)
- 10 x 50mm Tenons (60)
- D4mm Cutter (1)
- D5mm Cutter (1)
- D6mm Cutter (1)
- D8mm Cutter (1)
- D10mm Cutter (1)
- FESTOOL 3-Year Warranty
- FESTOOL 30-Day Guarantee
- Unique, patented cutting action that rotates and oscillates to create perfect, clean, and repeatable mortises every time.
- Mortise width adjustment with the turn of a dial allows for easier alignment when joining panels.

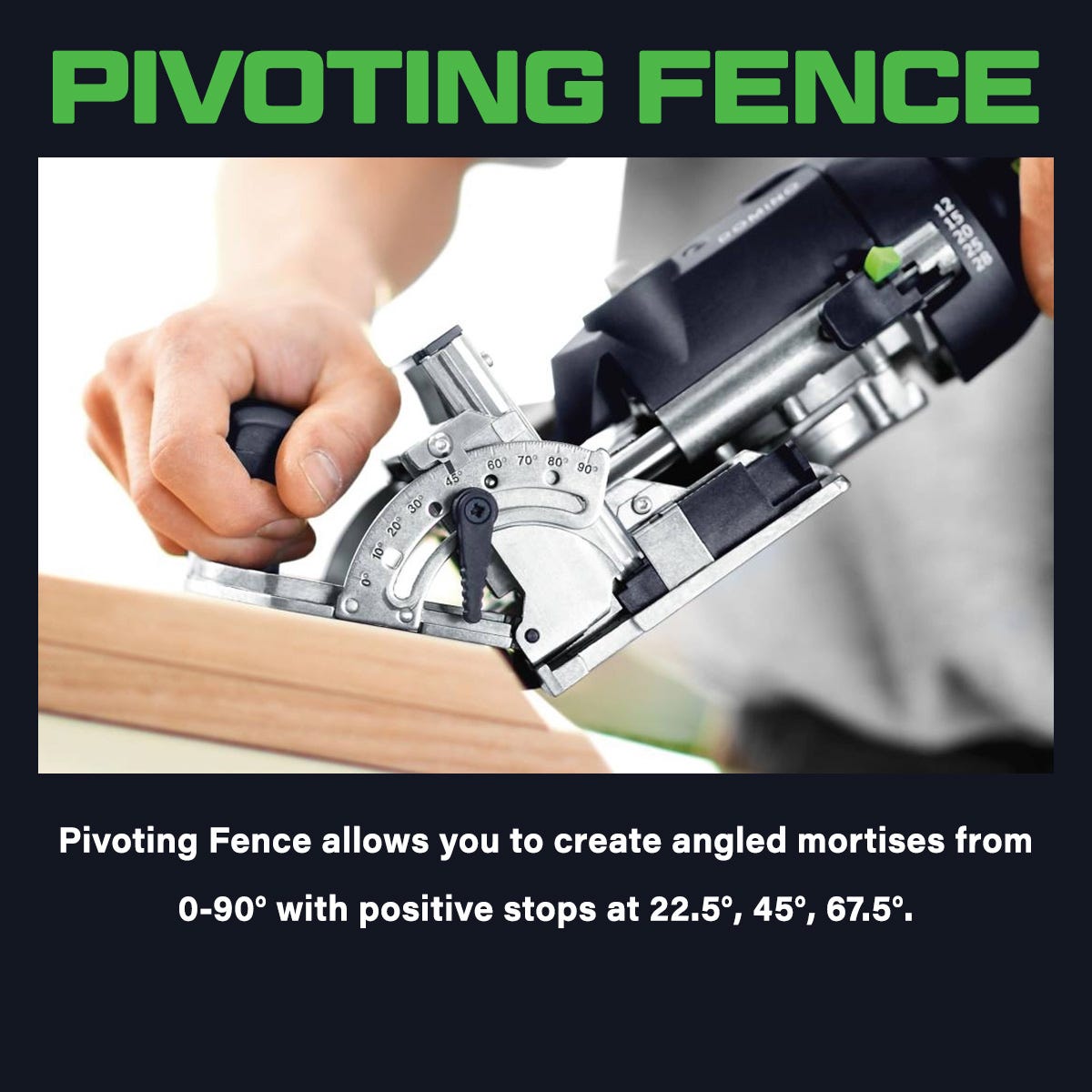

- Pivoting Fence allows you to create angled mortises from 0-90° with positive stops at 22.5°, 45°, 67.5°.
- Indexing pins for quick alignment against the edge of the workpiece for accurate placement.
The Festool Domino is the only tool that brings true mortise and tenon joinery to the palm of your hand and out of the workshop. The Domino will save you significant time and money. The Domino utilizes a drill bit style cutter that spins, while oscillating, creating mortises in easily adjustable sizes from 4-10mm in width and up to 50mm in depth. This unique cutter style, coupled with many versatile features, quickly adapting the tool to the job, makes mortise and tenon joinery fun, fast and easy.
The Domino’s rapid, repeatable mortising action and easy changeover between tenons and cutters (in only seconds) make tenon joinery faster, easier, and more accurate than ever before. The Domino tenons fit perfectly into the mortise helping create a strong, secure and resilient joint. The Domino has made mortise and tenon joinery repeatable, consistent and mobile. No longer is joinery a tedious and dubious task requiring many hours working with large shop equipment.
Festool Beech Tenons are made from all-natural, solid hardwood for strength and stability. The Beech Tenon serves as a true floating tenon in mortise and tenon applications such as furniture, cabinetmaking, casing and frame work. The flat, elongated design will not rotate, ensuring perfect alignment for both edge and face gluing. Suitable for both plywood and solid wood applications, the dense beech tenon will not expand or telegraph through material, leaving you with clean, flat, and consistent surfaces. The DOMINO Tenon is embossed with glue pockets, and is approximately 2mm shorter than nominal length, allowing space in the mortise for glue. Tenons come in removable plastic bins.
- Systainer to sort and keep DOMINO tenons together and for easy access to them when working
- Includes three plastic, removable storage bins with dividers
- Includes new T-Loc Systainer
Kit Includes
- (1) Domino Cutter (5mm)
- (1) Plug-it Power Cord
- (1) Support Bracket
- (1) Wrench
- (1) Trim Stop
- (1) Cross Stop
- (2) Systainer
- 4 x 20mm Tenons (450)
- 5 x 30mm Tenons (225)
- 6 x 40mm Tenons (150)
- 8 x 40mm Tenons (100)
- 8 x 50mm Tenons (75)
- 10 x 50mm Tenons (60)
- D4mm Cutter (1)
- D5mm Cutter (1)
- D6mm Cutter (1)
- D8mm Cutter (1)
- D10mm Cutter (1)
- FESTOOL 3-Year Warranty
- FESTOOL 30-Day Guarantee
Tenon Size Selection
| Minimum Lumber Thickness | Tenon Size | Tenon Width | Tenon Length |
|---|---|---|---|
| 1/2" | 4 mm (5/32") | 17 mm (21/32") | 20 mm (25/32") |
| 9/16" | 5 mm (3/16") | 19 mm (3/4") | 30 mm (1-3/16") |
| 3/4" | 6 mm (7/32") | 20 mm (25/32") | 40 mm (1-9/16") |
| 1" | 8 mm (5/16") | 22 mm (27/32") | 40 mm (1-9/16") 50 mm (1-31/32") |
| 1-3/16" | 10 mm (25/64") | 24 mm (15/16") | 50 mm (1-31/32") 80 mm (3-5/32") |
* Note: Imperial (inches) measurements are approximate conversions from metric dimensions.
Dimensions (By Model)
| Model | Length | Depth | Height |
|---|---|---|---|
| SYS-Combi 2 | 15-9/16" | 11-5/8" | 10-3/8" |
| SYS-Combi 3 | 15-9/16" | 11-5/8" | 12-3/8" |
| SYS MINI | 10-13/32" | 6-11/16" | 2-3/4" |
| SYS-Storage | 15-1/2" | 11-1/2" | 6-1/2" |
| SYS-MFT | 15-1/2" | 11-1/2" | 4-1/8" |
| Container Set (6 pieces) | 2-3/8" | 2-3/8" | 2-3/4" |
| Container Set (4 pieces) | 2-3/8" | 4-3/4" | 2-3/4" |
| 4-Drawer SORTAINER | 15-5/8" | 11-5/8" | 8-9/32" |
| 6-Drawer SORTAINER | 15-5/8" | 11-5/8" | 8-9/32" |
| 9-Drawer SORTAINER | 15-5/8" | 11-5/8" | 8-9/32" |
| 12-Drawer SORTAINER | 15-5/8" | 11-5/8" | 8-9/32" |
| SORTAINER SYS 4 | 15-9/16" | 11-5/8" | 12-11/16" |
| Systainer3 M 112 | 15-9/16" | 11-5/8" | 4-7/16" |
| Systainer3 M 137 | 15-9/16" | 11-5/8" | 5-6/16" |
| Systainer3 M 187 | 15-9/16" | 11-5/8" | 7-6/16" |
| Systainer3 M 237 | 15-9/16" | 11-5/8" | 9-5/16" |
| Systainer3 M 337 | 15-9/16" | 11-5/8" | 13-4/16" |
| Systainer3 M 437 | 15-9/16" | 11-5/8" | 17-3/16" |
| Systainer3 L 137 | 20" | 11-5/8" | 5-3/8" |
| Systainer3 L 187 | 20" | 11-5/8" | 7-3/8" |
| Systainer3 L 237 | 20" | 11-5/8" | 9-5/16" |
| Systainer3 ToolBox M 137 | 15-9/16" | 11-5/8" | 5-3/8" |
| Systainer3 ToolBox M237 | 15-9/16" | 11-5/8" | 9-5/16" |
| Systainer3 ToolBox L 137 | 20" | 11-5/8" | 5-6/16" |
| Systainer3 ToolBox L 237 | 20" | 11-5/8" | 5-6/16" |
| Systainer3 XXL 237 | 31-3/16" | 11-5/8" | 9-5/16" |
| Systainer3 XXL 337 | 31-3/16" | 11-5/8" | 13-4/16" |
| Systainer3 Attic Lid M 137 | 15-9/16" | 11-5/8" | 5-3/8" |
| Systainer3 Attic Lid M 187 | 15-9/16" | 11-5/8" | 7-6/16" |
| Systainer3 Attic Lid M 237 | 15-9/16" | 11-5/8" | 9-5/16" |
| Systainer3 Org M 89 | 15-9/16" | 11-5/8" | 3-1/2" |
| Systainer3 Org L 89 | 20" | 11-5/8" | 3-1/2" |
| Cutter Spindle Speed | 24,300 rpm |
| DOMINO Slot Cutter Diameter | 5 / 6 / 8 / 10 mm |
| Miter Routing | 0-90°; stop positions at 0°, 22.5°, 45°, 67.5°, 90° |
| Movable Stepped Stop | 16 / 20 / 22 / 25 / 28 / 36 / 40 mm |
| Power Consumption | 420 watts |
| Routing Depth Stop | 12 / 15 / 20 / 25 / 28 mm |
| Routing Height Adjuster with Scale | 5-30 mm |
| Hose Port Diameter | 27 mm |
| Weight | 7 lbs. (3.2 kg) |
