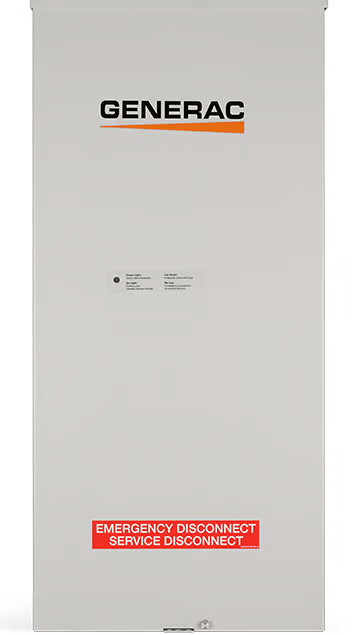

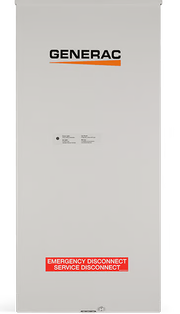

Generac 200A Automatic Transfer Switch with Integrated Surge Protection & Load Center, Service Entrance Rated (9399) (9939)
Generac 200A Automatic Transfer Switch with Integrated Surge Protection & Load Center, Service Entrance Rated (9399) (9939)
In Stock - Ships from Manufacturer
Product Details
Product Details
Key Features
Overview
The Generac 200A Automatic Transfer Switch with Integrated Surge Protection & Load Center - Service Entrance Rated is a residential transfer switch from Generac Power Systems for homes backed up by a Generac single-phase home standby generator. This is an automatic transfer switch designed for whole-home standby power, switching the house from utility power to generator power during an outage and back again when utility power returns. Model Number 9939 (Generac G0099390). It is rated for 200 amps at 120/240 V single-phase and combines the transfer switch, a branch circuit load center and a whole-home surge protection device in one enclosure.
Being service entrance rated means this switch can be installed as the service disconnect, between the utility meter and the home's loads. Combined with the built-in 20-space load center, that lets the installer land branch circuits directly in the switch. Tandem breakers raise the capacity to 40 circuits. For a new install, a service upgrade or a home where the existing panel is out of room, one enclosure doing three jobs means less wall space, fewer parts and a simpler installation.
Surge protection is built in rather than added on. The factory-installed whole-home surge protection device (SPD) protects the home's circuits and the Generac standby generator from power surges and transients. Generac includes the SPD under the switch's 5-year limited warranty, which is a meaningful extra for anyone who has priced a separate whole-home surge device and the labor to install it.
The transfer control is hardened against the kind of utility disturbances that cause trouble in the real world. Generac designed it to handle brownouts and other harmful power disturbances while keeping automatic transfer reliable. When utility power fails, the generator's controller starts the generator and the switch moves the home's loads over automatically, so the house is back on power without anyone flipping a switch.
Compatibility is specific: this switch is designed for single-phase Generac generators that use an Evolution, Power Zone 200 or Power Zone 410 controller. Confirm your generator's controller before ordering. The NEMA 3R enclosure is rated for outdoor installation and protects internal components from rain, snow, ice and debris, so it can go on an exterior wall next to the meter or inside a garage or utility room.
Who should buy it? Homeowners and electrical contractors installing or upgrading a Generac home standby system on a 200A service, especially where the switch will serve as the service disconnect and the circuits can move into the integrated load center. As with any service entrance equipment, installation should be done by a licensed electrician or authorized Generac dealer and inspected to local code.

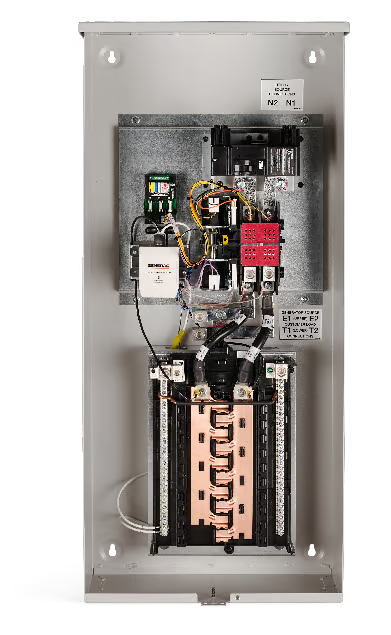

Three Jobs, One Enclosure
Transfer switch, load center and surge protection share one box, so the installer mounts and wires one piece of equipment instead of three.
- 200A service entrance rated automatic transfer switch
- 20-space load center, up to 40 circuits with tandem breakers
- Factory-installed whole-home surge protection device
Built for Bad Power Days
Outages rarely arrive cleanly. The hardened control handles brownouts and disturbances, and the SPD takes the hit from surges that come with storms and restoration.
- Hardened transfer switch control for reliable automatic transfer
- NEMA 3R enclosure for indoor or outdoor mounting
Key Specifications
|
|
200 A |
|---|---|
|
|
120/240 V, single-phase |
|
|
Automatic |
|
|
Service entrance rated |
|
|
20 spaces, up to 40 circuits with tandem breakers |
|
|
Factory-installed whole-home SPD |
|
|
NEMA 3R, indoor or outdoor |
|
|
Evolution, Power Zone 200, Power Zone 410 |
Compatibility
Built For
Pro Tip
Check the controller on your generator before you order. This switch is built for Evolution, Power Zone 200 and Power Zone 410 controllers, and matching it up front avoids a return and a rescheduled install.
Warranty & Support
Tool Nut's Take
The Generac 200A Automatic Transfer Switch with Integrated Surge Protection & Load Center Simplifies the Whole Install
If your standby generator install also needs a new service disconnect and more breaker space, this switch covers all three in one box.
- Who it's for: Homeowners and electricians installing a Generac home standby generator on a 200A, 120/240 V single-phase service.
- Why it stands out: Service entrance rating, a 20-space load center and factory-installed whole-home surge protection, all covered by a 5-year limited warranty.
- Worth knowing: It only works with Generac generators running Evolution, Power Zone 200 or Power Zone 410 controllers, and it is service equipment that needs a licensed installer and a permit.
Common Questions
- Can it be installed outdoors? Yes. The NEMA 3R enclosure is rated for indoor or outdoor installation.
- How many circuits does the load center hold? 20 spaces, expandable to 40 circuits with tandem breakers.
- Which generators does it work with? Single-phase Generac generators with an Evolution, Power Zone 200 or Power Zone 410 controller.
- Is surge protection included? Yes. A whole-home surge protection device is factory-installed and covered by the 5-year limited warranty.
