Knipex 8-in. Forged Wire Stripper 20-10 AWG-1000V Insulated (13 78 8 SBA)
Knipex 8-in. Forged Wire Stripper 20-10 AWG-1000V Insulated (13 78 8 SBA)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

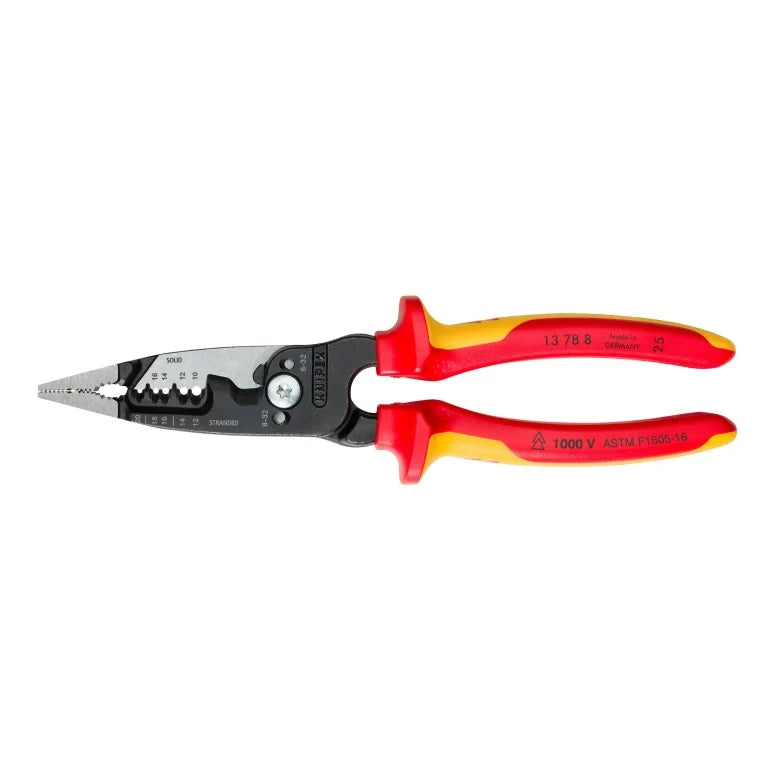

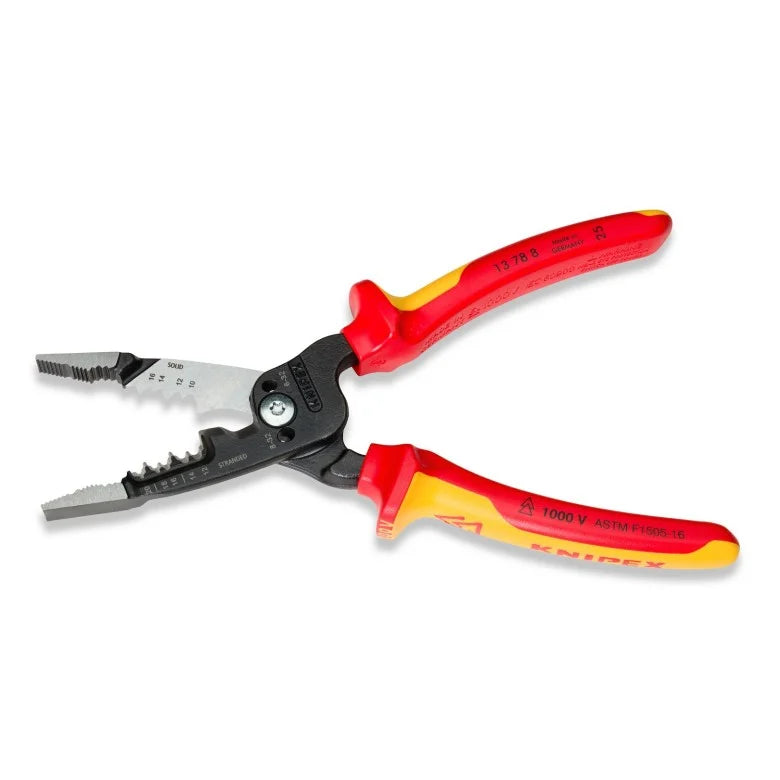

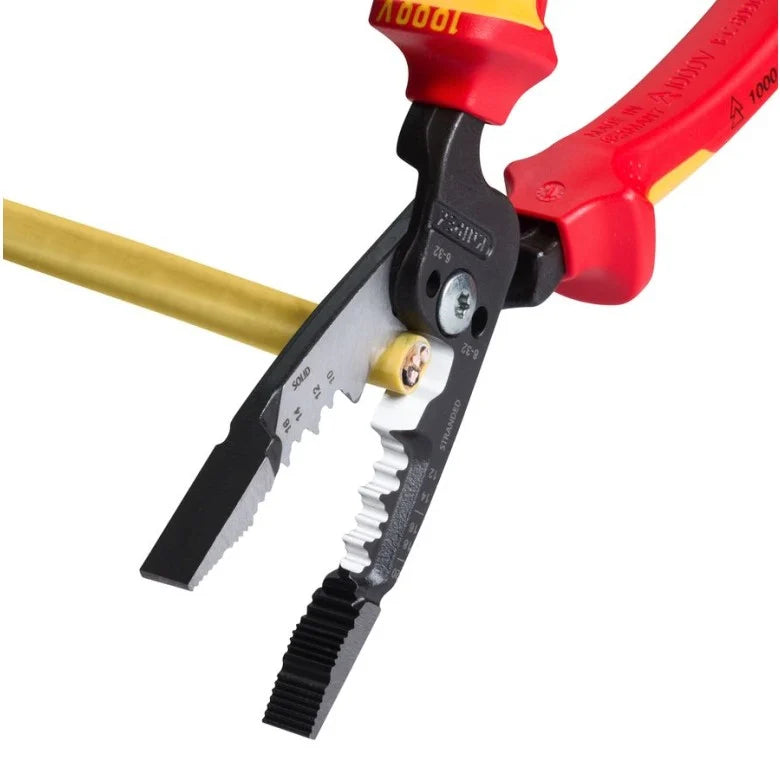

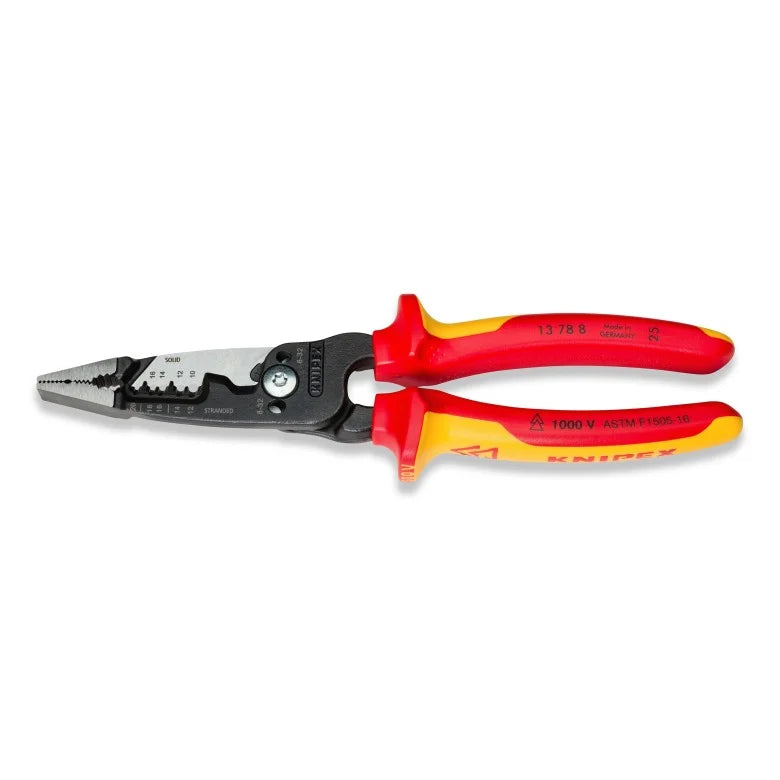

The Knipex 8 in. Insulated Forged Wire Stripper 20-10 AWG, model 13 78 8 SBA, is a forged hand tool built for electrical installation and maintenance work. This is a wire stripper/cutter designed for stripping, cutting, gripping, and twisting electrical wire. If you spend your day roughing in boxes, trimming out devices, or making repeated conductor prep cuts, this tool is built to cover the jobs that usually make you reach for two or three different tools.
The main working range is 20 to 10 AWG for both solid and stranded wire, which puts it right in the middle of everyday branch-circuit and control wiring tasks. Knipex also built in screw shears for 6-32 and 8-32 screws, and the design is meant to cut those screws without damaging the threads. That saves time when you are trimming device screws to fit box depth without stopping to chase threads afterward.
Where this tool separates itself from a basic stamped wire stripper is the forged construction. It is made from high-grade special tool steel, then forged and multi-stage oil-hardened for strength and edge life. The blades are also induction hardened, which matters because a wire stripper that loses its edge or starts deforming at the cutter becomes annoying fast. This one is built more like a serious pair of pliers than a throwaway stripper.
On the cutting side, the shear cutting blades are a big part of the appeal. Knipex states they offer 50% higher cutting capacity than the competition. In plain terms, that means better leverage and a cleaner cut when you are working with cable, conductors, and common jobsite wiring types including NM-B, BX, and MC. The stated cable cutting capacity is 1/2 in., so it is set up for real electrical work, not just light trim tasks.
The nose and jaw layout are practical too. You get wide gripping jaws for twisting wires together, plus a wire looping groove for forming loops when landing conductors on screw terminals. Knipex also added locating ridges to help you find the stripping holes by feel, which is the kind of small detail that matters when you are repeating the same prep work all day. An integrated opening spring keeps the handles opening cleanly between cuts and strips, so frequent use is easier on your hand.
For work around energized environments, the handle package matters just as much as the head. This tool uses 1000V insulated multi-component handles and meets the requirements of ASTM F1505. The insulation gives electricians and industrial maintenance users an added layer of protection when insulated hand tools are required. It is not just dipped red-and-yellow plastic for looks. It is purpose-built for the trade.
Jobsite utility goes beyond stripping and cutting. The tool also includes conduit reaming capability for removing burrs, which is another nice time-saver when you are trying to keep your pouch lighter. Instead of grabbing a separate deburring tool for a quick cleanup, you have that function built into the same hand tool.
Who should buy it? This Knipex forged wire stripper makes the most sense for electricians, facility maintenance techs, service pros, and serious DIY users who want one insulated hand tool that does the daily basics well. If you only strip a wire once in a while, it is more tool than you need. If you do repetitive electrical prep work and care about cut quality, grip, insulation, and long-term durability, this is the kind of tool you buy once and keep on the truck for years.
Built for Repetitive Electrical Prep
This wire stripper is set up for the stuff electricians do over and over: strip conductors, trim screws, twist wires, and move on. The forged build gives it a more solid feel than light-duty strippers, which shows up when the tool is in your hand all day.

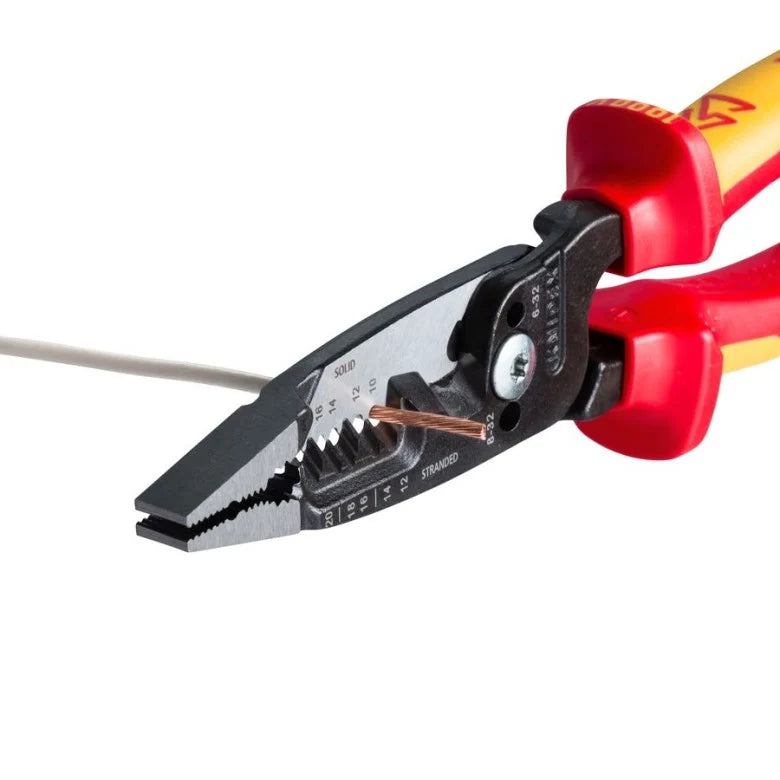

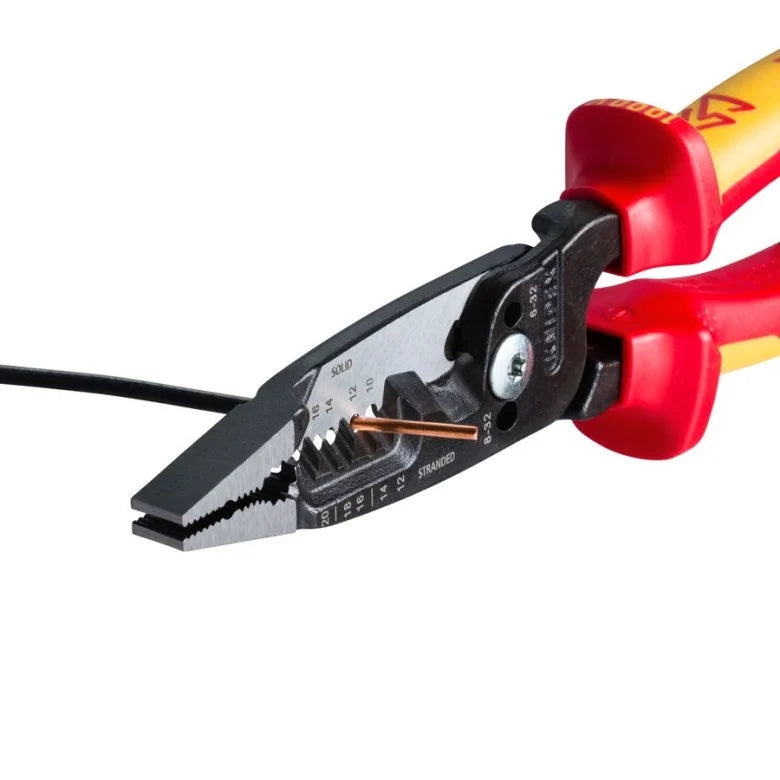

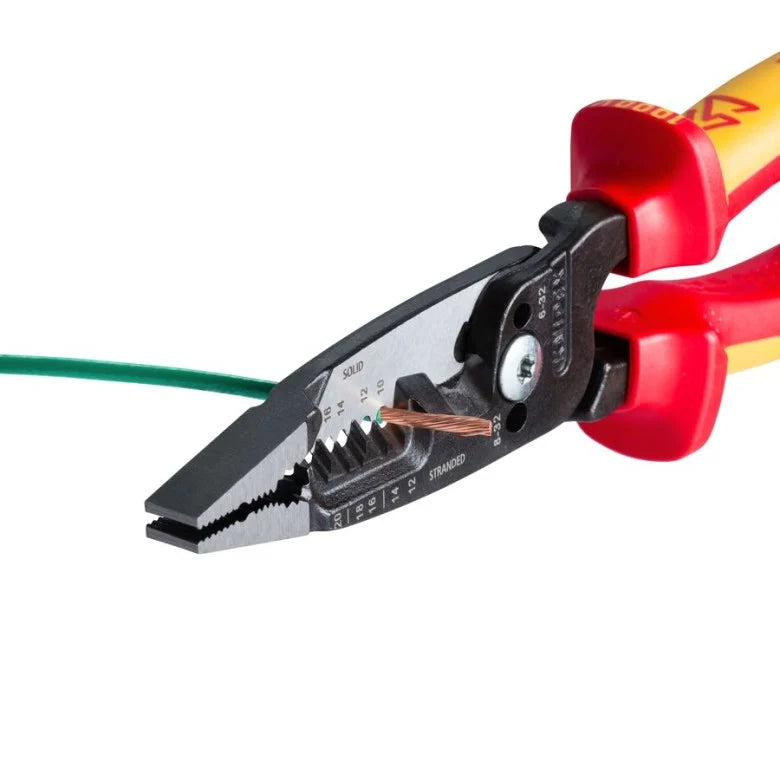

- Strips both solid and stranded wire from 20 to 10 AWG

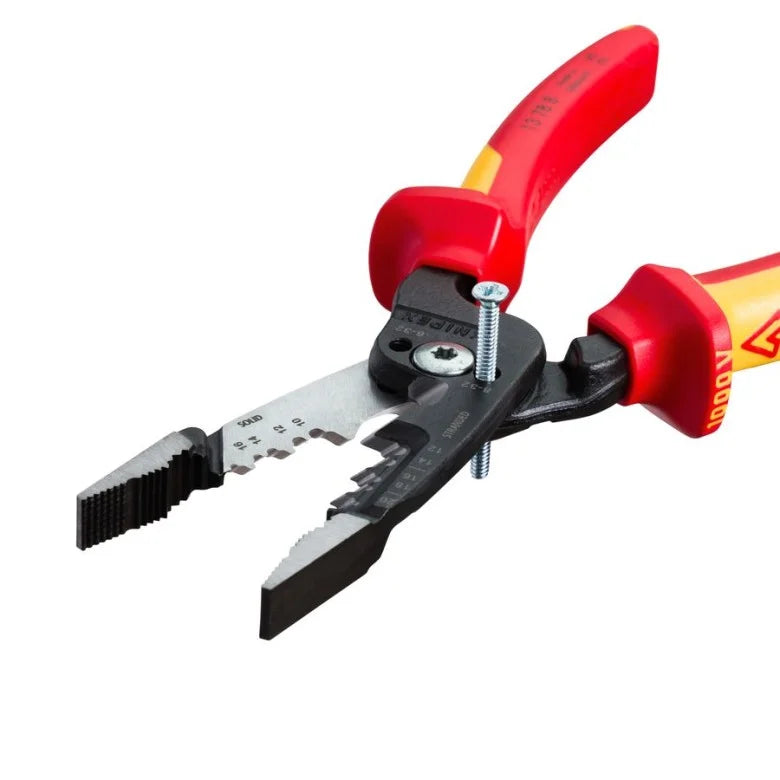

- Cuts 6-32 and 8-32 screws without threading damage
- Integrated opening spring helps with repeated cuts and strips
Cleaner Cuts on Real Cable
The cutting section is more than an afterthought. Knipex uses shear cutting blades and induction-hardened edges so the tool can handle day-to-day cable work without feeling weak or sloppy.
- Shear cutting blades offer 50% higher cutting capacity than competition

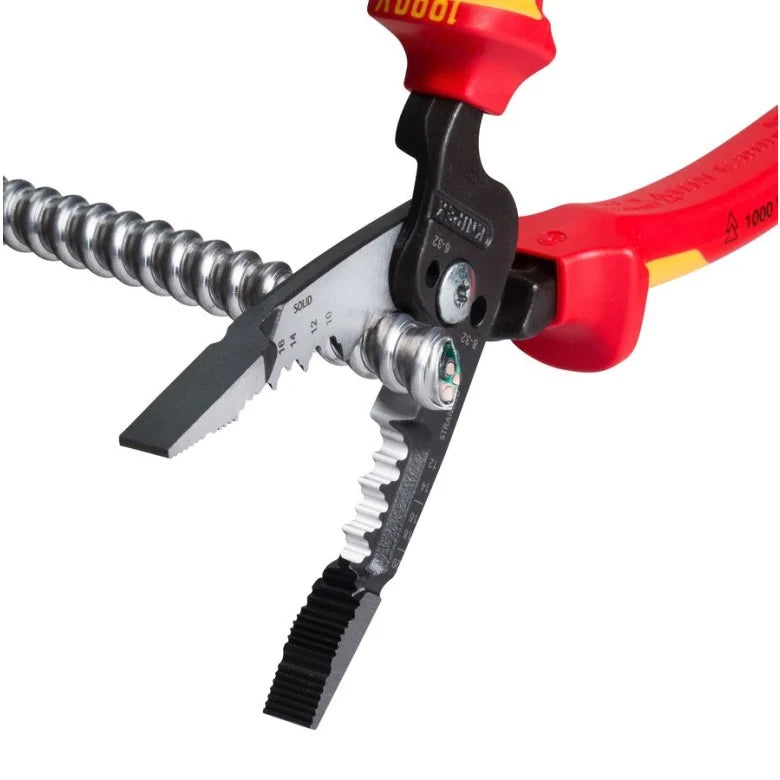

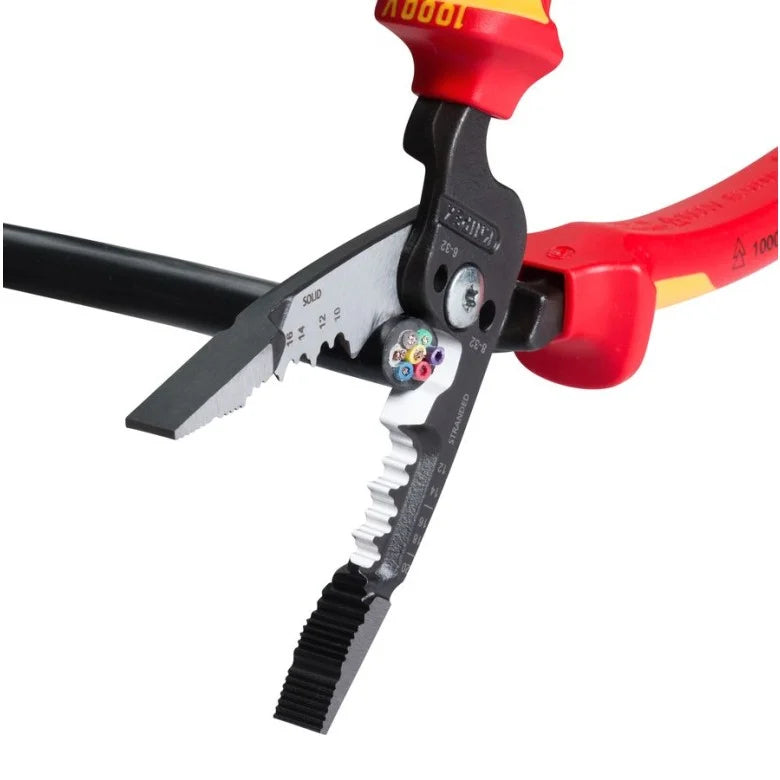

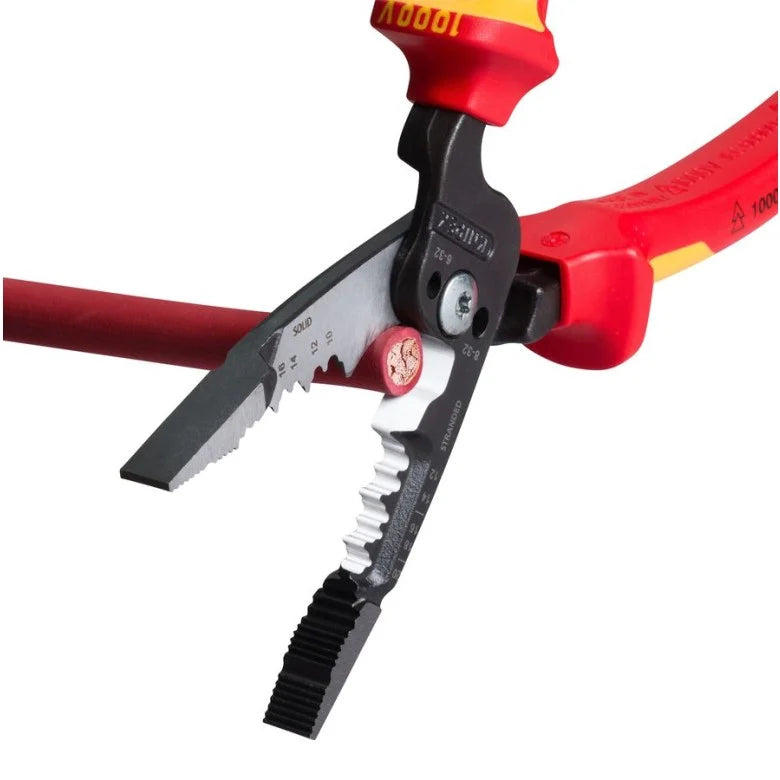

- Cuts cable, wires, NM-B, BX, and MC
- Rated for up to 1/2 in. cable cutting capacity
Insulated Grip With Useful Small Details
The insulated handles are the headline feature, but the small touches are what make the tool easy to live with. Wide jaws help with wire twisting, locating ridges help you find the right stripping point, and the looping groove speeds up terminal prep.
- 1000V insulated multi-component handles
- Meets ASTM F1505 requirements
- Includes wire looping groove and conduit reaming function
Key Specifications
| Tool Type | Insulated forged wire stripper/cutter |
|---|---|
| Overall Length | 8 in. |
| Stripping Capacity | 20 to 10 AWG |
| Cable Cutting Capacity | 1/2 in. |
| Weight | 0.61 lbs |
| Material | High-grade special tool steel, forged, multi-stage oil-hardened |
| Handle Type | 1000V insulated multi-component handles |
| Made In | Germany |
Built For
Pro Tip
Use the locating ridges to find the stripping holes by feel when you are working fast in a crowded box. Then use the looping groove right after stripping to form a clean terminal loop without reaching for another tool.
Warranty & Support
Tool Nut's Take
Knipex 8 in. Insulated Forged Wire Stripper 20-10 AWG Is the Kind of Electrical Hand Tool That Earns Its Spot
This is a serious electrician's wire stripper that does the everyday stuff well and adds enough extra function to replace a couple of tools in the pouch.
- Who it's for: Electricians, service techs, and maintenance crews who regularly strip, cut, loop, and twist wire and want insulated hand tools they can trust.
- Why it stands out: Forged construction, 1000V insulation, screw shears, wire looping groove, conduit reaming, and better-than-basic cutting capacity make it more useful than a standard wire stripper.
- Worth knowing: This is one piece, not a kit, and it is built for people who will actually use these functions often. If you only strip wire once in a blue moon, it is probably more tool than you need.
Common Questions
- What wire sizes can it strip? It strips both solid and stranded wire from 20 to 10 AWG.
- Can it cut common device screws? Yes. It is designed to cut 6-32 and 8-32 screws without damaging the threads.
- Is it insulated for electrical work? Yes. It has 1000V insulated multi-component handles and meets ASTM F1505 requirements.
- What kind of cable can it cut? Knipex states it cuts cable, wires, NM-B, BX, and MC, with a stated cable cutting capacity of 1/2 in.
